evCreate API 5.7 Help

Canvas Envision Document Items

Canvas Envision Creator is a web-based editor of Envision documents. An Envision document is a file of the proprietary .evdoc file type that consists of various items: pages, page layers, 3D CAD models, 3D animations, 2D shapes, images, videos, text objects, and more. Each item is an instance of a given item type. The evCreate API provides the contracts for such item types and functions to manipulate such items.

Document hierarchy

An Envision document organizes its items in the following hierarchical structure:

  • Document:

    • Page:

      • Layer:

        • Object

The evCreate API sections reflect this hierarchy.

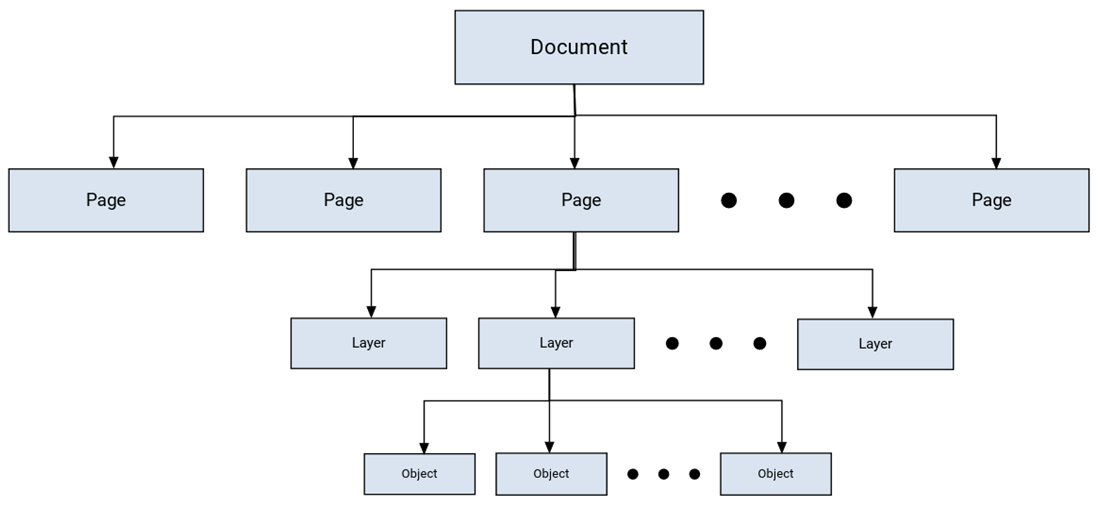

Canvas Envision document hierarchy

Envision item object blueprint

Technically, items in Envision documents are JavaScript (JS) objects whose blueprints are defined in the TypeScript (TS) source code.

EvItem interface

The EvItem TS interface defines a blueprint of a JS object representing an evdoc item in code. An item object includes an item type identifier and an item data object.

{ item: [[[EvItemType|#evitemtype-enumeration]]], data: [[[EvItemData|#evitemdata-type-alias]]] }

Where:

item: EvItemType

An identifier of the type of a given evdoc item specified as a member of the EvItemType TS enumeration.

data: EvItemData

Data specific to a given item type provided as a JS object of a type united in the EvItemData TS type.

EvItem implementation in JS

When writing in JS, you should handle an object of an evdoc item constructed according to the EvItem interface:

{ item: "item type", data: { property: "value" } }

Where:

item: "item type"

An identifier of the type of a given evdoc item specified as the string value of a member of the EvItemType enumeration.

data: { }

Data specific to a given item type provided as a JS object with one or more properties of a given item

property: value

A required or optional property of a given item data object with a valid value.

Abbreviated EvItem syntax

The syntax for items can become verbose in JS scripts, and, in most situations, the item type is clear from the context of the performed operation. The evCreate API supports an abbreviated version of the EvItem syntax where only the content of the data property is given, and the item type is deduced from the context where the item is used. For example:

{ id: "internal object ID" }

EvItemType enumeration

The EvItemType TS enumeration defines the types of evdoc items.

Page: "page";

A page.

Object: "object";

A graphic object of any type.

Layer: "layer";

A layer on a page.

Model: "model";

A 3D model object.

Part: "part";

A part of a 3D model.

Animation: "animation";

A 3D animation object.

EvItemData type alias

The EvItemData TS type alias is a union type that unites the item data types for all item types.

type EvItemData: | [[[EvPageItemData|#evpageitemdata-interface]]] | [[[EvLayerItemData|#evlayeritemdata-interface]]] | [[[EvObjectItemData|#evobjectitemdata-interface]]] | [[[EvModelItemData|#evmodelitemdata-interface]]] | [[[EvPartItemData|#evpartitemdata-interface]]] | [[[EvAnimationItemData|#evanimationitemdata-interface]]]

Identifying Envision document items

You should identify an item with an identification property included in an EvItem object. Each item type has properties that you can use for identification.

You can include the id property in the data object of an item object to identify a document item. However, this property operates with different kinds of identifiers across item types:

  • Static UUIDs for pages, layers, and 3D parts.

  • Dynamic internal object IDs for objects, 3D models, and 3D animations.

UUIDS are persistent across application sessions. You can store them in your DBs and hardcode them in your scripts because they stay the same between launches of the application.

Internal object IDs are dynamic across application sessions. You should not store them in your DBs or hardcode them in your scripts because they can change between launches of the application.

The id property is the fastest way to identify objects in the document. An event callback returns the identifier of an object where the event happened. You can use the identifier from the event callback to perform an operation on that object and pass it back to the system.

Envision document item types

Documents can include the following items:

Page items

A page item is a JS or TS object of the "page" (EvItemType.Page) item type.

  • Page item TS blueprint

  • Page item JS blueprint

  • { item: EvItemType.Page, data: EvPageItemData }
  • { item: "page", data: { id: "page item's UUID" } }

EvPageItemData interface

The EvPageItemData TS interface defines a blueprint of a page item data object kept in the data property of a page item object. A page item data object has the following properties:

optional id: string;

A string, the persistent internal UUID of a given page item. The UUID is globally unique across documents and sessions and can be stored outside the context of the current document session.

optional index: number;

A number, the zero-based index of a given page item in the document.

optional isMaster: boolean;

A Boolean, a flag indicating whether a given page item is a master page. It is false by default.

optional name: string;

A string, the name of a given page item.

Page identifiers

You can identify a page item with one of the following page item data object properties:

  • id

  • name

  • index

Layer items

A layer item is a JS or TS object of the "layer" (EvItemType.Layer) item type.

  • Layer item TS blueprint

  • Layer item JS blueprint

  • { item: EvItemType.Layer, data: EvLayerItemData }
  • { item: "layer", data: { index?: # page?: { id = "page item's UUID" } } }

EvLayerItemData interface

The EvLayerItemData TS interface defines a blueprint of a layer item data object kept in the data property of a layer item object. A layer item data object has the following properties:

optional id: string;

A string, the persistent internal UUID of a given layer item. The UUID is globally unique across documents and sessions and can be stored outside the context of the current document session.

optional index: number;

A number, the zero-based index of a given layer item on the page.

optional name: string;

A string, the name of a given layer item.

optional page: EvItem

A Page item to which a given layer item belongs. This property is necessary only when the page of the layer is needed. If it is not specified, the layer is assumed to belong to the page currently selected (active) in the document.

Layer identifiers

You can identify a layer item with one of the following layer item data object property options:

  • id

  • name

  • index for the current page

  • index and page combination

Object items

An object item is a JS or TS object of the "object" (EvItemType.Object) item type.

  • Object item TS blueprint

  • Object item JS blueprint

  • { item: EvItemType.Object, data: EvObjectItemData }
  • { item: "object", data: { id: 12345678 } }

EvObjectItemData interface

The EvObjectItemData TS interface defines a blueprint of an object item data object kept in the data property of an object item object. An object item data object has the following properties:

optional id: EvObjId;

A number, the dynamic internal ID of a given object item unique in the current document session. This ID is not globally unique across different sessions of the same document and should not be stored outside the context of the current document session.

optional name: string;

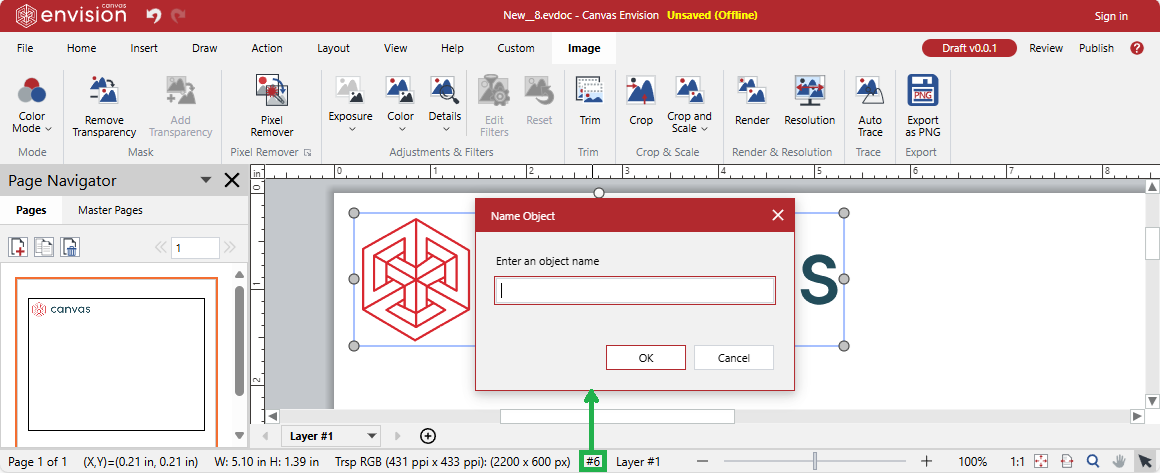

A string, the name of a given object item. Users can name objects in the Canvas Envision Creator application. To name an object, a user should select it and click the object ID on the Status bar below the main working area. Object names must be unique, but objects can be duplicated.

Naming an object in Canvas Envision Creator

Object identifiers

You can identify an object item with one of the following object item data object properties:

  • id

  • name

Model items

A model item is a JS or TS object of the "model" (EvItemType.Model) item type.

  • Model item TS blueprint

  • Model item JS blueprint

  • { item: EvItemType.Model, data: EvModelItemData }
  • { item: "model", data: { id: 12345678 } }

EvModelItemData interface

The EvModelItemData TS interface defines a blueprint of a model item data object kept in the data property of a model item object. A model item data object has the following properties:

optional id: EvObjId;

A number, the dynamic internal ID of a given model item unique in the current document session. This ID is not globally unique across different sessions of the same document and should not be stored outside the context of the current document session.

optional name: string;

A string, the name of a given model item.

Model identifiers

You can identify a model item with one of the following model item data object properties:

  • id

  • name

Part items

A part item is a JS or TS object of the "part" (EvItemType.Part) item type.

  • Part item TS blueprint

  • Part item JS blueprint

  • { item: EvItemType.Part, data: EvPartItemData }
  • { item: "part", data: { metaValue: { field: "metadata field", value: "metadata value" }, model?: { id = "model item's ID" } } }

EvPartItemData interface

The EvPartItemData TS interface defines a blueprint of a part item data object kept in the data property of a part item object. A part item data object has the following properties:

optional partId: EvPartId;

A string, the persistent internal UUID of a given part item. The UUID is globally unique across documents and sessions and can be stored outside the context of the current document session. It can be queried with the GetPartInfo(part: EvItem, options?: EvPartQueryOptions): Promise<Ev3DObjectData> and GetModelInfo(model?: EvItem, options?: EvPartQueryOptions): Promise<Ev3DObjectData> functions for parent parts and the entire model.

optional model: EvItem;

A model item to which a given part item belongs. This property is necessary only when the model of the part is needed. If it is not specified, the part is assumed to belong to the model currently displayed in 3D mode. The model must be specified for 3D edit API calls outside 3D mode.

optional metaValue: EvMetaValue;

Metadata of a given part item type provided as a JS or TS object of the EvMetaValue type. The evCreate API supports part identification with the part metadata instead of the part ID.

EvMetaValue interface

The EvMetaValue TS interface defines a blueprint of a part item metadata object kept in the metaValue? property of a part item data object. A part item metadata object has the following properties:

field: string;

A string, the name of a metadata field.

value: string;

A string, the value of a metadata field.

optional group: string;

A string, the name of a group of metadata fields.

Part identifiers

You can identify a part item with one of the following part item data object properties:

  • partId

  • metaValue

Animation items

An animation item is a JS or TS object of the "animation" (EvItemType.Animation) item type.

  • Animation item TS blueprint

  • Animation item JS blueprint

  • { item: EvItemType.Animation, data: EvAnimationItemData }
  • { item: "animation", data: { id: 12345678 } }

EvAnimationItemData interface

The EvAnimationItemData TS interface defines a blueprint of an animation item data object kept in the data property of an animation item object. An animation item data object has the following properties:

optional id: EvObjId;

A number, the dynamic internal ID of a given animation item unique in the current document session. This ID is not globally unique across different sessions of the same document and should not be stored outside the context of the current document session.

optional name: string;

A string, the name of a given animation item.

Animation identifiers

You can identify an animation item with one of the following animation item data object properties:

  • id

  • name

23 April 2025
