Calling evCreate API in Browser Console

You can explore the evCreate API by calling its functions in the console of the browser tab that hosts the Canvas Envision Editor.

Calling functions in the browser console

To call evCreate API functions in the browser console:

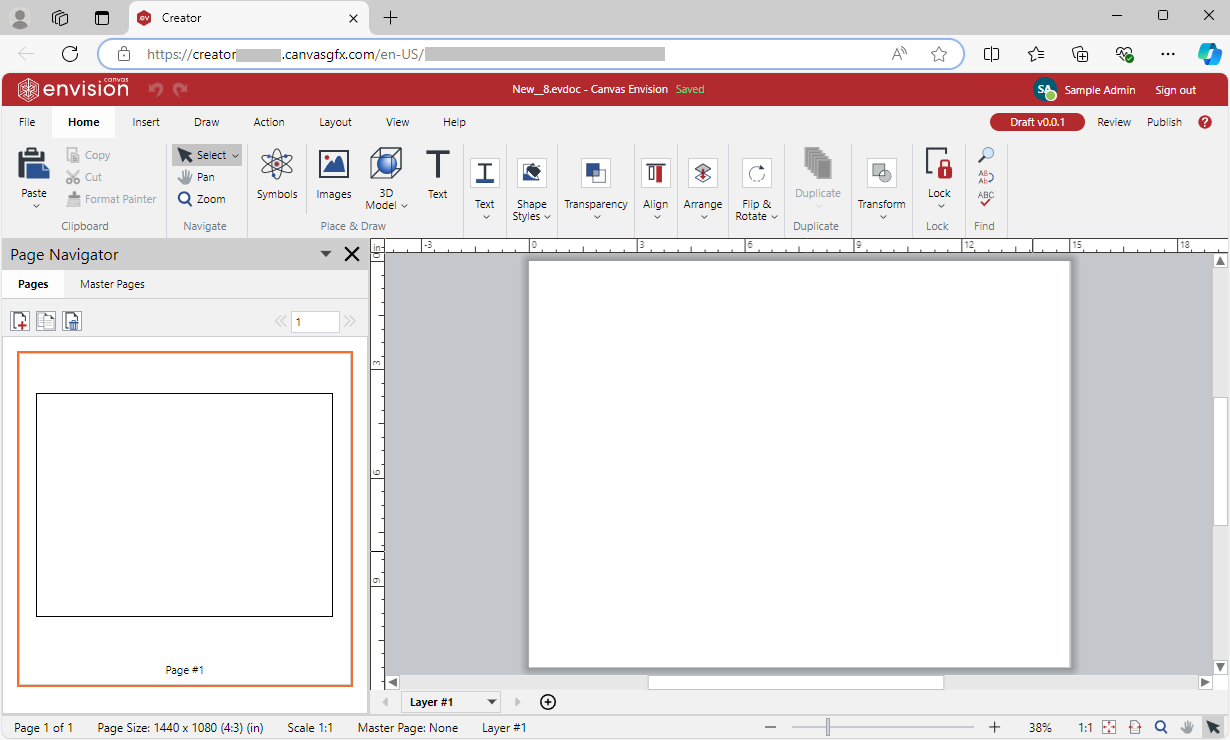

Create or open an Envision document in the Canvas Envision Creator.

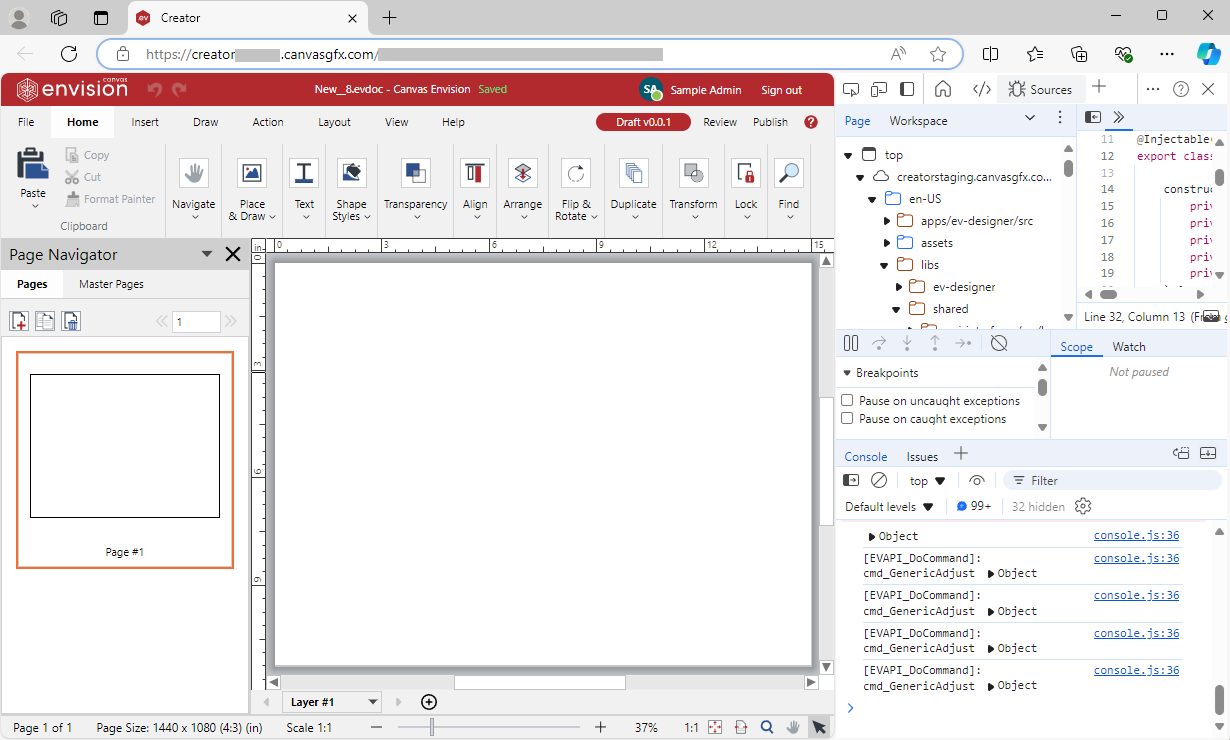

Open the browser console.

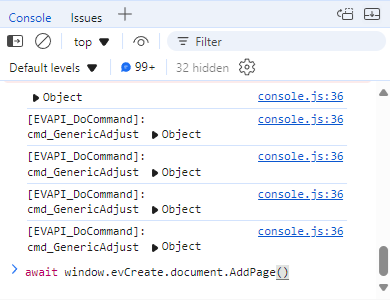

In the browser console, enter the evCreate API function you want to call and press Enter.

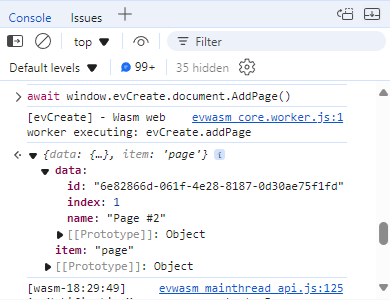

Explore and process the return value of the called function.

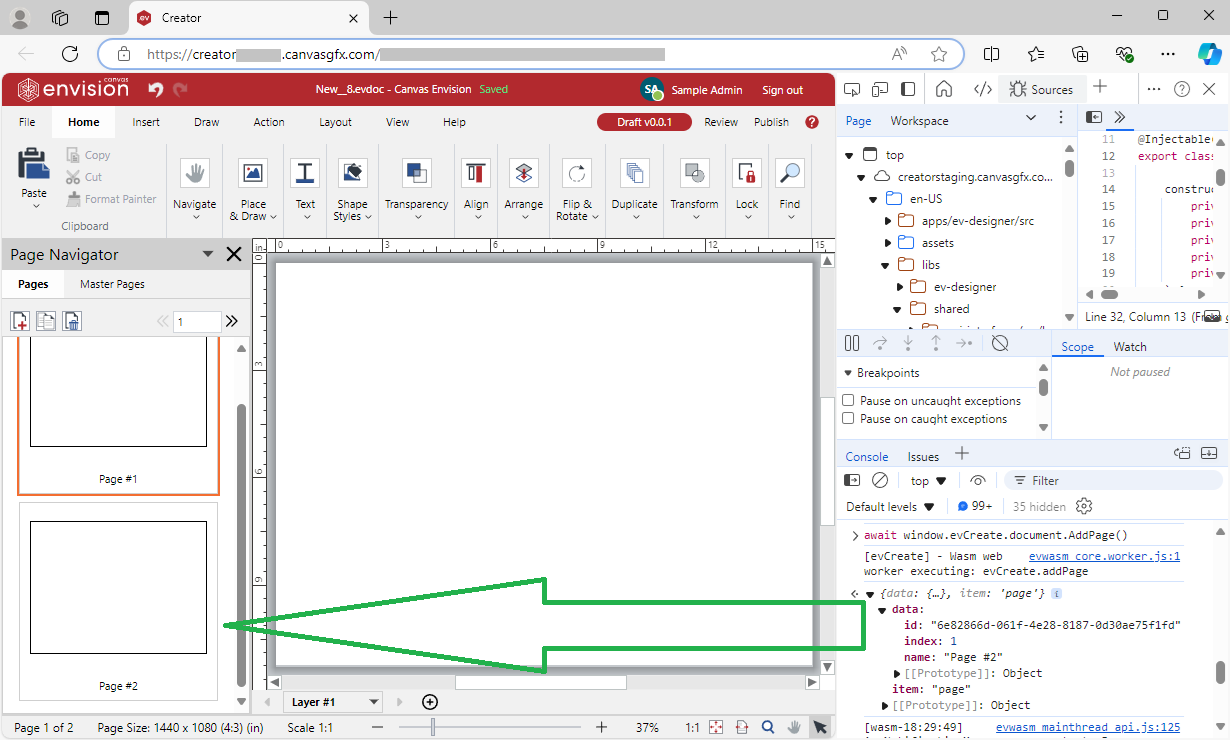

Explore the result of calling the function in the document and compare it against the return value.

Opening the browser console

You can open the browser console for a given web page in multiple ways. The general procedure is the same across the supported browsers:

Open the Developer tools browser pane, either:
- Press F12.
- Press Ctrl+Shift+I.

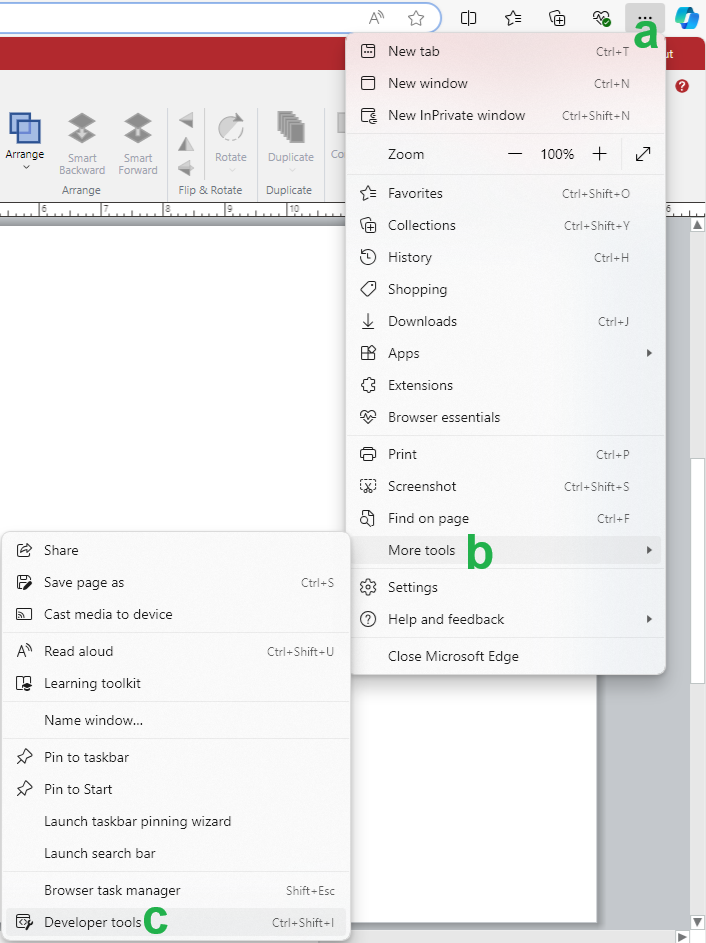

- On the browser toolbar, click the ellipsis button and then More tools > Developer tools.
The keyboard shortcuts may not work due to your browser settings. Also, Canvas Envision Creator can be configured to override the default browser shortcuts; for details, see the Keyboard Shortcuts section of the Canvas Envision Knowledge Base.

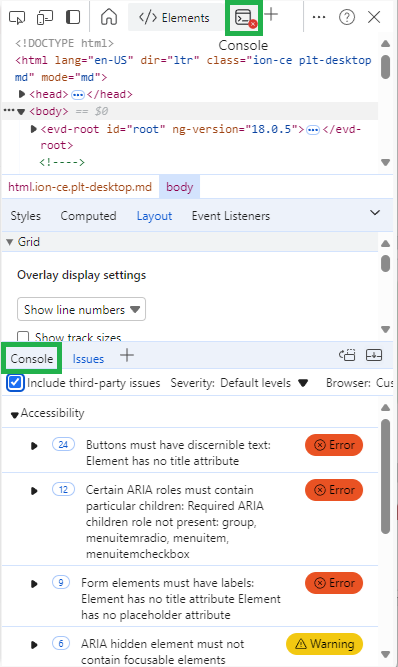

In the Developer tools browser pane, click the Console tab on a toolbar of the upper or lower pane section.

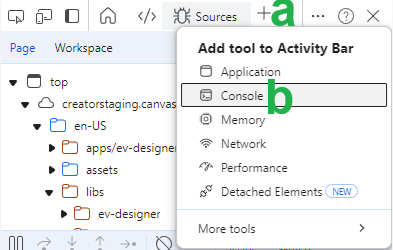

If the Console tab is not visible on the pane section toolbar, click the More tools button on this toolbar and then click Console from the menu.
Depending on the browser and pane section, the More tools button can be More tabs, and its icon can be an ellipsis, plus, or double chevron.

Function call expression statement

When calling an evCreate API function in the browser console, you should enter it as follows:

await window.evCreate.namespace.Function()

Where:

await

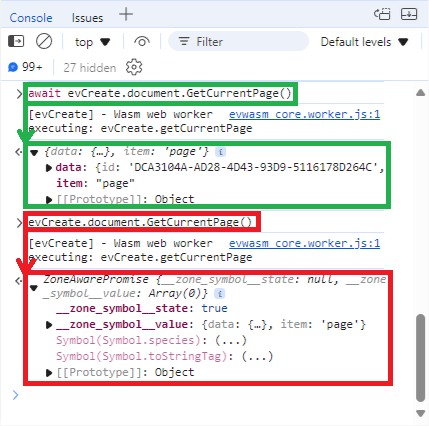

A global JS operator that pauses the function execution until the returned Promise is fulfilled or rejected. If the Promise is fulfilled, the console outputs a value (data object) unwrapped from the Promise. If the Promise is rejected, the console throws an error. You can omit await for functions that return a standard JS datatype value, custom data object, or nothing. Calling a function that returns a Promise without await will output the unwrapped Promise to the console if this Promise is fulfilled.

window

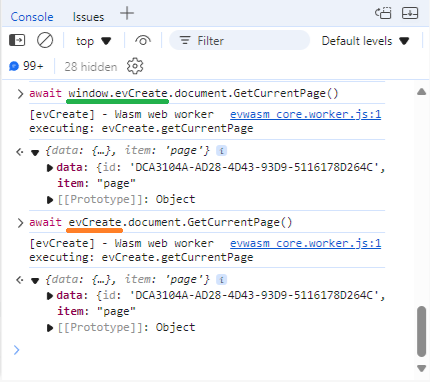

A global variable representing the browser window that runs the Canvas Envision Editor and exposes the evCreate API to external systems. For quick input, you can omit window globally in the browser console. In such a case, the console implicitly assumes the window namespace. However, you should explicitly specify it in the namespaces nested in compound calls, JS scripts, and files.

evCreate

The namespace of the evCreate API that provides access to the API sections represented as nested namespaces.

namespace

The namespace of an evCreate API section that represents items, objects, or functionality and provides access to functions for working with them, such as document, page, object, object.text, object.text.edit, and so on.

Function()

A function in a given API namespace to be executed with the provided arguments. Depending on the function declaration, you can or must provide no, one, or more than one argument.

For example:

await window.evCreate.document.AddPage(1, false, "New Page")

Closing the browser console

You can close the opened browser console for a given web page in multiple ways. The general procedure is the same across the supported browsers, either:

Press F12.
Press Ctrl+Shift+I.
On the right side of the Developer tools browser pane toolbar, click X.
