Create Function

Creates a Bézier curve item in an Envision document currently opened in the Canvas Envision Creator app.

    Create(points: [[[EvCoord2D|evcoord2d-type-alias.html]]][], zOrder?: [[[EvObjectZOrder|evobjectzorder-interface.html]]]): Promise<[[[EvItem|canvas-envision-document-items.html#object-items]]]>

Parameters

points: EvCoord2D[]

An array of EvCoord2D arrays, an array of 2D coordinates of points that define one or more segments of a Bézier curve item.

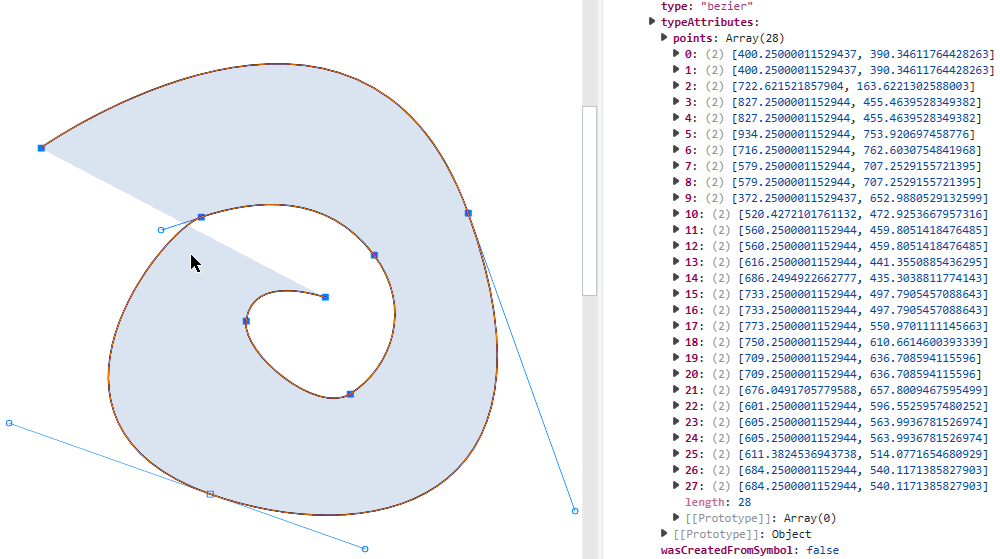

Bezier curve example with 7 segments and 28 points

Each segment of a Bézier curve is defined by four points specified in the following order:

Starting point
Weight point 1
Weight point 2
Endpoint

A weight point defines how far the segment is pulled in its direction.

If the Bézier curve includes multiple segments, the following rules must be met:

The total number of the points must be divisible by 4.
The coordinates must be the same for:
- The endpoint of a given segment.
- The starting point of the segment following the given segment.

zOrder?: EvObjectZOrder

An EvObjectZOrder object that includes:

The layer item object of a layer in the current document where the given Bézier curve item should be added. The default value is the current layer on the current page.
The position of the given Bézier curve item in the stack of object items on the given layer. It is a zero-based index that is 0 for the topmost object item on the layer and increases by 1 for each following object item going down the stack. The default value is 0.

Return value

Promise<EvItem>: A Promise that, if fulfilled, resolves to an Object item object of the Bézier curve item successfully created in the current document.

01 May 2025
